1.Ductile Iron Investment Castings | Ductile Iron Foundry – Welleshaft

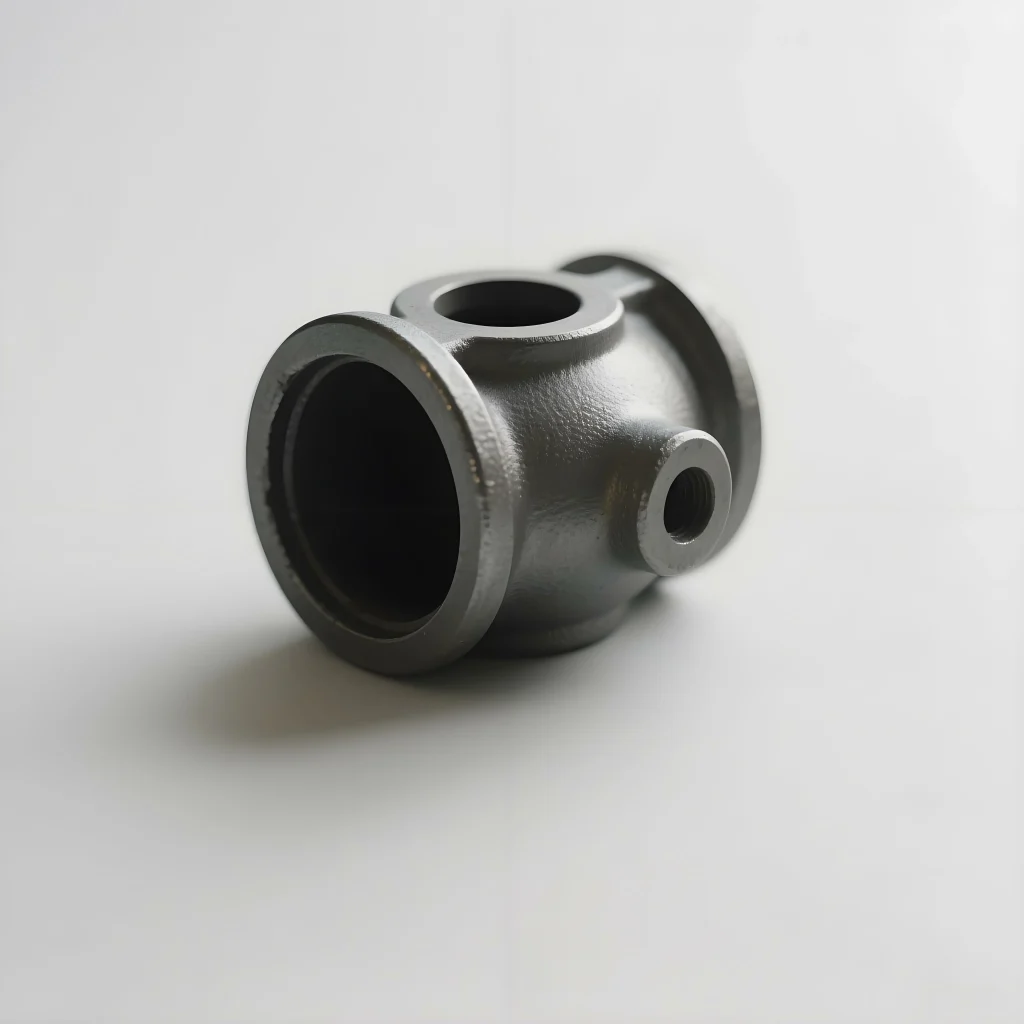

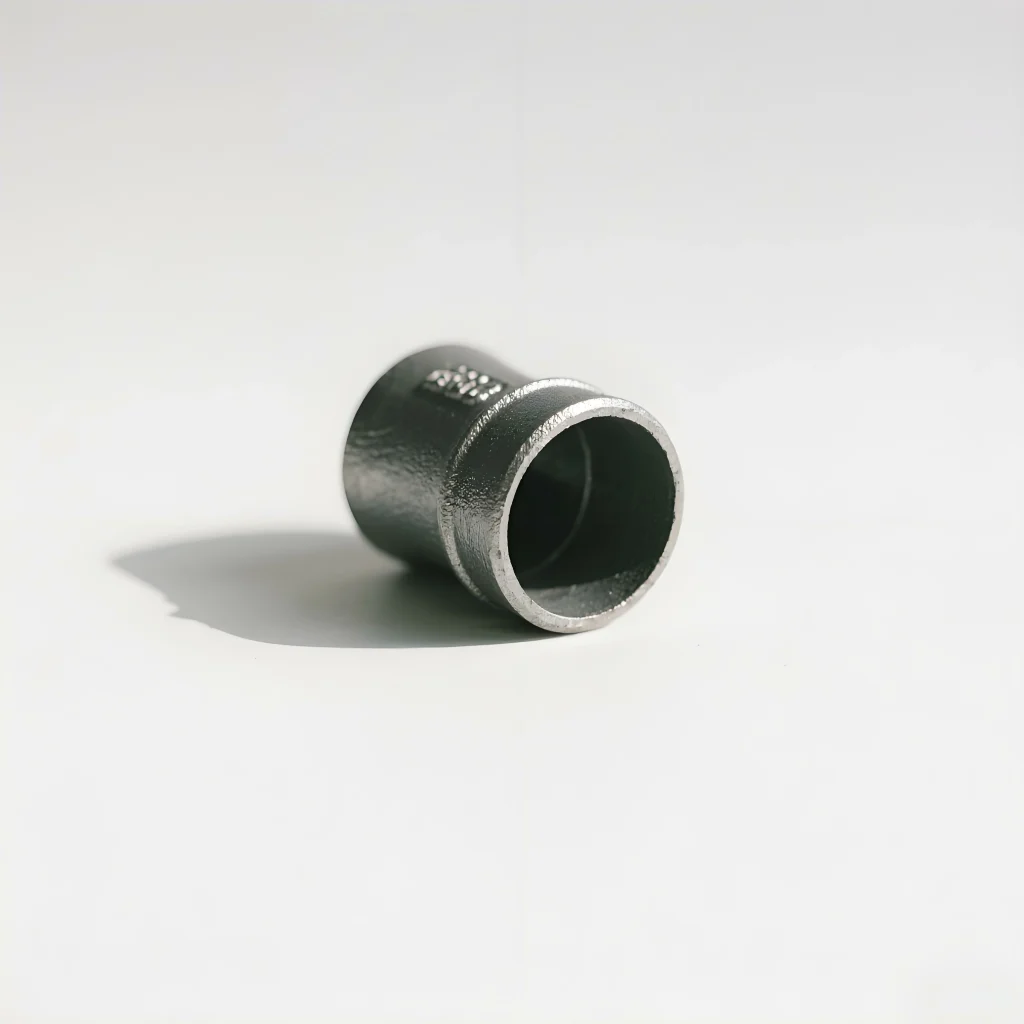

Custom Ductile Iron Castings shape today’s machinery with strength and dependability. At Welleshaft, we specialize in producing high-performance ductile iron cast parts with consistent quality and reliable mechanical properties. Our cast ductile iron components are trusted across key industries — including automotive, agriculture, municipal construction, and heavy equipment.

2.What Is Ductile Iron Casting and How Does It Work?

Ductile iron, often called nodular iron or SG iron, stands out due to its toughness and durability. It’s a type of cast iron ductile material that combines strength with flexibility. The ductile iron casting process starts by melting iron, then adding magnesium to shape graphite into rounded nodules instead of flakes — improving ductility of iron.

You’ll find ductile iron castings produced using investment casting, sand casting, or die casting, depending on part shape and production volume.

3.Why Engineers Choose Ductile Casting

With Custom Ductile Iron Castings, you get complex shapes, solid mechanical properties, and low production costs.

• Flexibility in designing shapes
• High strength-to-weight performance
• Excellent corrosion resistance
• Lower risk of fractures thanks to iron’s ductility
• Stable dimensions and consistent results

Property	What It Means
Elongation	Withstands tension without breaking
Brinell Hardness	Resists surface wear
ASTM A536 Rated	Meets global mechanical standards
Shrink Rate	Nearly zero shrinkage after cooling
Machinability	Easy to finish with modern cutting tools



4.Industries Using Ductile Iron Castings

At our ductile iron casting foundry, we supply components to various industries:

（1）Automotive & Transportation

• Ductile iron castings for automotive suspension parts
• SG iron brake caliper components for trucks
• ASTM A536 engine block castings
• Die casting ductile iron parts for electric vehicles

（2）Infrastructure & Municipal

• Ductile iron manhole cover casting suppliers
• Ductile iron water pipe fittings casting manufacturer
• ASTM A536 pipe casting for water infrastructure
• SG iron casting for municipal sewage systems
• Cast ductile iron drain components for construction

（3）Agriculture & Machinery

• Ductile iron casting for agricultural machinery
• Austempered ductile iron gears for heavy equipment

（4）Security & Hardware

• Cast ductile iron arms and housings for door hardware

5.Grades of Ductile Iron Casting

Welleshaft offers multiple casting grades cast iron, including ASTM A536 and ASTM A897. Each grade meets different performance needs:

• ASTM A536 Grades

Grade	Tensile (ksi)	Yield (ksi)	Elongation (%)	Brinell Hardness
80-55-06	80	55	6	187–255
65-45-12	65	45	12	156–217
60-40-18	60	40	18	Up to 187
100-70-03	100	70	3	214–302

6.Austempered Ductile Iron Castings (ADI)

When you need more from your casting, austempered ductile castings (ADI) deliver extra toughness. This special heat-treatment creates a fine, durable microstructure.

• ASTM A897 Grades for ADI

Grade	Tensile (ksi)	Yield (ksi)
1	130	90
2	150	100
3	175	125
4	200	150
5	230	185

7.Ductile Iron Casting Step-by-Step

Here’s how the ductile iron casting process works:

1. Melt base iron and adjust chemistry.
2. Add magnesium to form nodules.
3. Pour into molds — via investment casting or die casting.
4. Let it cool and solidify.
5. Clean, trim, and heat-treat (e.g., austempering).

8.Why Welleshaft is the Right Ductile Iron Foundry

Our customers keep choosing Welleshaft because we deliver results. We’re not just a supplier — we’re your casting partner.

（1）What You Get with Welleshaft

• Skilled metallurgists in-house
• Quick turnarounds for low and high volumes
• Custom tooling for exact shapes
• Trusted across OEMs and global sectors



9.People Also Ask

• What makes ductile iron different from cast iron?

  It has rounded graphite nodules, making it stronger and more flexible than gray cast iron.

• What is ASTM A536?

  It’s a global spec that defines strength, yield, and ductility for ductile iron castings.

• How durable is ductile iron?

  It can exceed 100 ksi in tensile strength with excellent fatigue resistance.

• Can it handle heavy stress?

  Yes, especially austempered ductile castings that reach up to 230 ksi.

• Why does austempering matter?

  It adds toughness and wear resistance, making parts last longer.

10.Reach Out to Welleshaft

Need dependable ductile iron foundry services? Talk to Welleshaft. We provide:

• Ductile iron castings for auto, infrastructure, and industrial parts
• Custom austempered ductile castings and die casting parts
• Certified ASTM A536 materials for key components

Send us your drawings. Let’s build parts that work harder and last longer.
